§ Демо
Есть еще материал

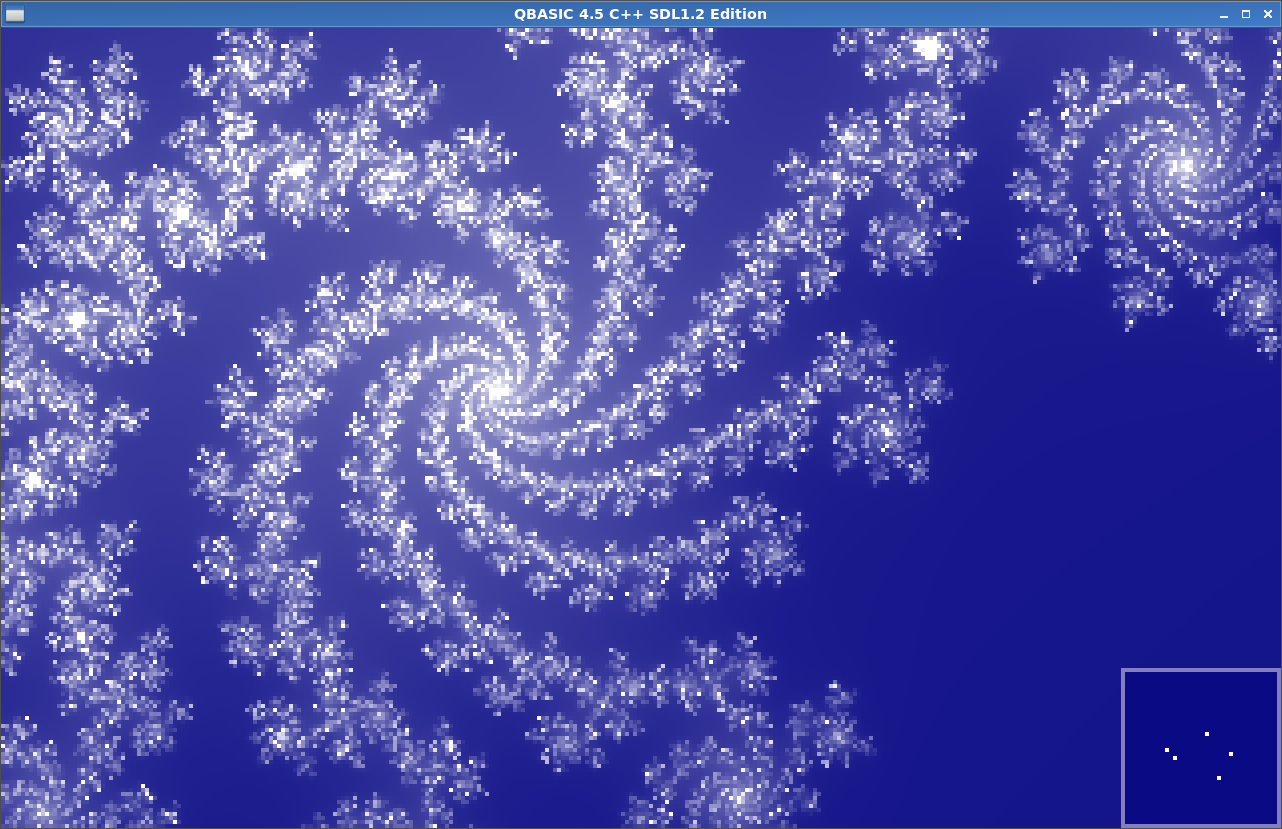

по Мандельбротской демонстрации.
§ Код
1#include <qblib.c>
2
3
4int mandel(double cx, double cy) {
5
6 double x = 0, y = 0;
7 for (int i = 0; i < 256; i++) {
8
9 double tx = x*x - y*y + cx,
10 ty = 2*x*y + cy;
11
12 x = tx;
13 y = ty;
14
15 if (x*x + y*y >= 4) return i;
16 }
17
18 return 255;
19}
20
21
22int orbit(double cx, double cy) {
23
24 double x = 0, y = 0;
25
26 for (int i = 160; i < 200; i++)
27 for (int j = 280; j < 320; j++) {
28 int cl = (qb_screen[j][i] >> 1);
29 pset(j, i, cl < 1 ? 1 : cl);
30 }
31 lineb(280,160,319,199,128);
32
33 for (int i = 0; i < 256; i++) {
34
35 double tx = x*x - y*y + cx,
36 ty = 2*x*y + cy;
37
38 x = tx;
39 y = ty;
40
41 if (x*x + y*y >= 4) return i;
42
43 pset(300 + 5.0*x, 180 - 5.0*y, 255);
44 }
45
46 return 255;
47}
48
49int main(int argc, char* argv[]) {
50
51 screen(13);
52
53 for (int i = 1; i < 256; i++) palette(i, i, i, 128 + (i>>1));
54 palette(0, 0, 255, 0);
55
56 int iter = 0;
57 double x0 = 0, y0 = 0, f = 1.0;
58 int mx = -1, my = -1;
59 double dx = 0, dy = 0, df = 1;
60
61 while (sdlevent(EVT_REDRAW)) {
62
63
64 if (mx == mouse.x && my == mouse.y && mouse.st == 0 && iter == 0)
65 continue;
66
67 double xm = (float)(mx - 160) / 100.0;
68 double ym = (float)(100 - my) / 100.0;
69
70
71 if (iter == 0) {
72
73
74 if (mouse.st & LF_CLICK ) {
75
76 iter = 25;
77 dx = xm*f / (double) iter;
78 dy = ym*f / (double) iter;
79 df = pow(1.2, -1 / (float)iter);
80 }
81
82 else if (mouse.st & RT_CLICK ) {
83
84 iter = 25;
85 dx = xm*f / (float) iter;
86 dy = ym*f / (float) iter;
87 df = pow(2.0, 1 / (float)iter);
88 }
89
90 }
91
92
93 while (iter && sdl_trigger_frames > 0) {
94
95 x0 += dx;
96 y0 += dy;
97 f *= df;
98
99 iter--;
100 sdl_trigger_frames--;
101 }
102
103
104 for (int y = -99; y <= 100; y++)
105 for (int x = -160; x < 160; x++) {
106
107 double vx = x0 + f*(double)x / 100.0;
108 double vy = y0 + f*(double)y / 100.0;
109
110 int cl = mandel(vx, vy);
111 pset(160 + x, 100 - y, cl < 1 ? 1 : cl);
112 }
113
114 mx = mouse.x;
115 my = mouse.y;
116
117
118 line(160, 98, 160, 102, 128);
119 line(158, 100, 162, 100, 128);
120
121 orbit(x0 + xm, y0 + ym);
122 }
123
124 return 0;
125}
